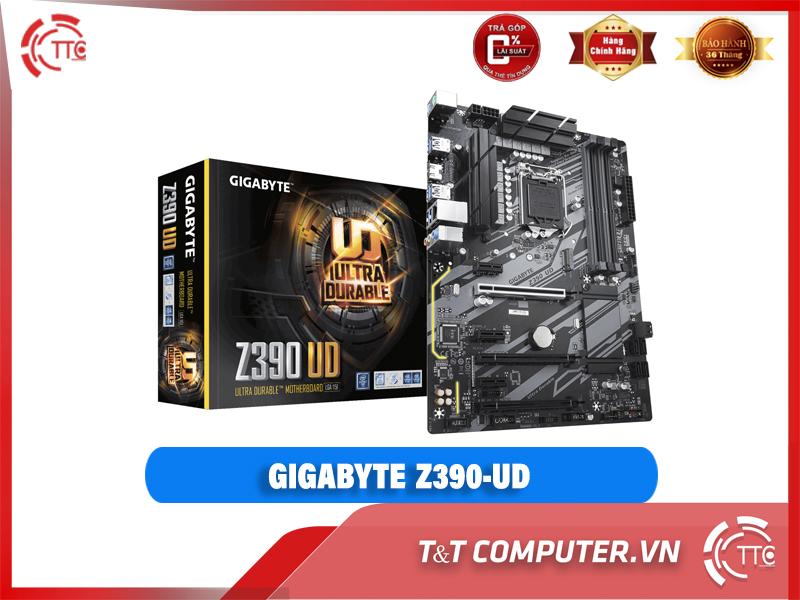

Mainboard Gigabyte Z390 UD

Thương hiệu: GIGABYTE | Mã SP:
3.150.000₫
Hết hàng

Thông số sản phẩm

  • Hỗ trợ CPU Intel® Core™ thế hệ thứ 9/ 8/ Pentium® Gold/ Celeron® sử dụng socket LGA 1151
  • Hỗ trợ DDR4 tốc độ 4400(OC) MHz
  • Hỗ trợ cổng kết nối: 2x TURBO M.2, Intel Optane Memory Ready. Intel Turbo USB 3.1 GEN2
  • Tản nhiệt kéo dài giúp CPU hoạt động ở tốc độ cao.
Mua trả góp MUA NGAY
Gọi 0947821368 để được tư vấn miễn phí

THÔNG SỐ KỸ THUẬT

Bộ vi xử lý

Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU

Bộ nhớ Ram

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) 3 x PCI Express x1 slots

Chipset

Intel® Z390 Express Chipset

Giao tiếp

8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports available through the internal USB header

Lan

Realtek® GbE LAN chip (10/100/1000 Mbit)

Âm thanh

Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out

Bộ nhớ

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Cổng I/O phía sau

1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x HDMI port 6 x USB 3.1 Gen 1 ports 1 x RJ-45 port 3 x audio jacks

Cổng I/O ở trong

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper

Kích thước

ATX Form Factor; 30.5cm x 23.0cm

Bảo hành

36 tháng

Hãng sản xuất

Gigabyte
