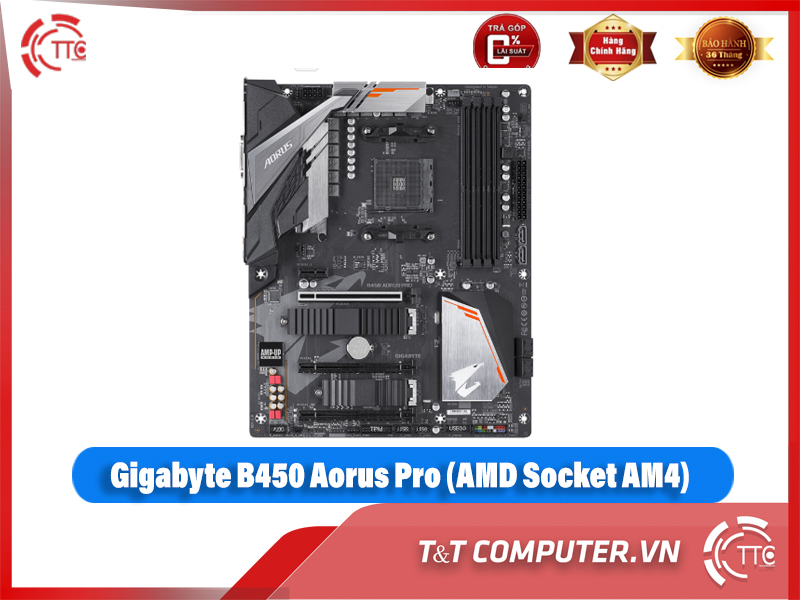

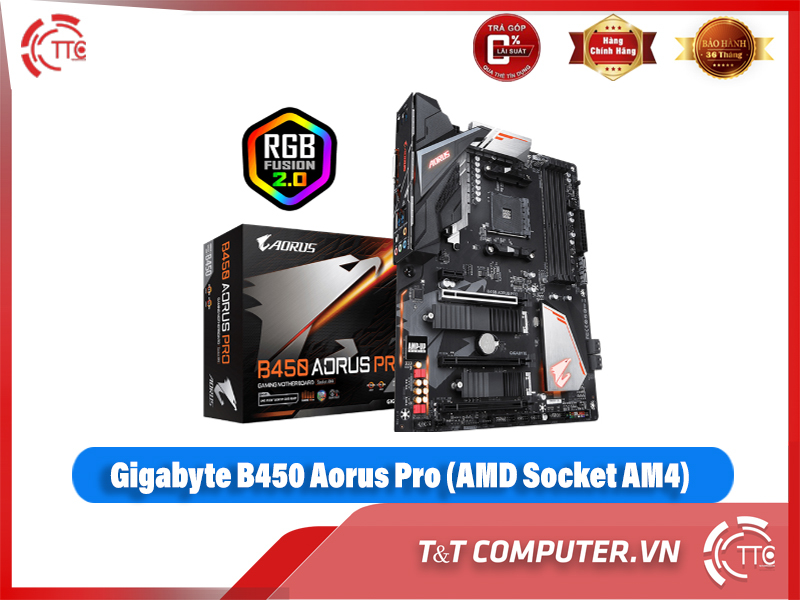

GIGABYTE B450 AORUS PRO
- Socket: AM4 AMD Ryzen thế hệ 1 và 2, AMD Ryzen với Radeon Vega Graphics
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 64GB DDR4 3200(O.C.)/2933/2667/2400/2133 MHz)
Sản phẩm | Bo mạch chủ |
Tên Hãng | GIGABYTE |
Model | B450 AORUS PRO |
CPU hỗ trợ | AMD |
Chipset | AMD B450 |
RAM hỗ trợ | 4 x DDR4 DIMM, Tối đa 64GB, DDR4 3200(O.C.)/2933/2667/2400/2133 MHz |
Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (PCIEX1_1) |
Ổ cứng hỗ trợ | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
Cổng kết nối (Phía trong) | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x CPU cooler LED strip/RGB LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x Clear CMOS jumper |
Cổng kết nối (Phía sau) | 1 x HDMI port 1 x DVI-D port 4 x USB 3.1 Gen 1 ports 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
LAN / Wireless | Intel® GbE LAN chip (10/100/1000 Mbit) |
Kích cỡ | ATX Form Factor 30.5cm x 24.4cm |
